Plano-Convex Lenses, S1-UV Grade Fused Silica

Specifications

Focal Length Tolerance

+/- 3%

Diameter Tolerance

+/- 0.125 mm

Thickness Tolerance

+/- 0.5 mm

Design Wavelength

546 nm

Centration

<3'

Surface Quality

60-40 scratch-dig

Edges

Fine ground and beveled

thumbnail

Download more specifications

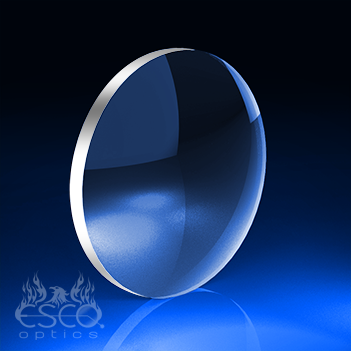

Plano-Convex Lenses, S1-UV Grade Fused Silica

Esco PN:
  • $ 6270


Plano-convex lenses are positive focal length elements that have one spherical surface and one flat surface. These lenses are designed for infinite conjugate (parallel light) use or simple imaging in non-critical applications. These optic lenses are ideal for all-purpose focusing elements.

Esco manufactures Plano-convex lenses from S1-UV Grade Fused Silica. Every optic is pitch polished, providing superior surface quality and an exceptional low-cost imaging performance with a variety of light sources.

We also offer plano-concave lenses, which have negative focal length components and one concave surface. For information on our custom optical lens work, contact Esco today.
