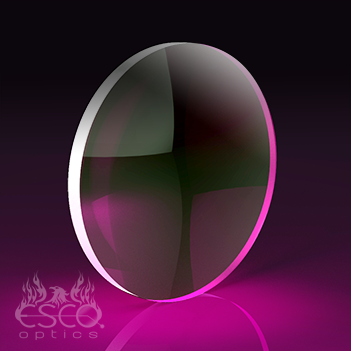

Biconvex Lenses, G1 Commercial Grade Fused Quartz

Biconvex Lenses, G1 Commercial Grade Fused Quartz

Esco PN:
  • $ 4356
  • Reg: $ 4.84


Biconvex Lenses are ideal for finite conjugate imaging over a narrow spectral range. Esco manufactures biconvex lenses from G1 - Commercial Grade Fused Quartz. The edges are fine ground and beveled and every lens is pitch polished to provide superior surface quality and excellent low-cost imaging performance with a variety of light sources.

Specifications

Focal Length Tolerance +/- 3%
Diameter Tolerance +/- 0.1 mm
Thickness Tolerance +/- 0.1 mm
Design Wavelength 587 nm
Centration <3'
Surface Quality 40-20 scratch-dig
Edges Fine ground and beveled
