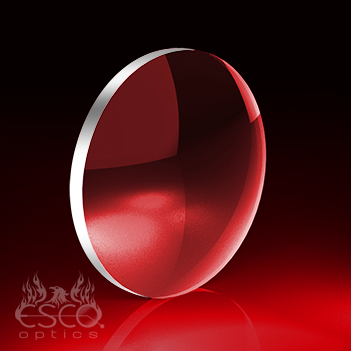

Plano-Convex Lenses - I2-IR Fused Silica

Specifications

Focal Length Tolerance

+/- 3%

Diameter Tolerance

+/- 0.125 mm

Thickness Tolerance

+/- 0.5 mm

Design Wavelength

546 nm

Centration

<3'

Surface Quality

60-40 scratch-dig

Edges

Fine ground and beveled

Plano-Convex Lenses - I2-IR Fused Silica

Esco PN:


Plano-convex lenses are positive focal length elements that have one spherical surface and one flat surface. These lenses are designed for infinite conjugate (parallel light) use or simple imaging in non-critical applications. These optic lenses are ideal for all-purpose focusing elements.

Interest in low OH lenses? Please email sales@escooptics.com or call 800.922.3726 for a quote. We will price out your request at the current market value, given the price fluctuations on low OH material. Esco’s IR plano-convex lenses allow for exceptional transmission up to 3 microns. Additionally, low OH IR grade fused silica is an outstanding alternative to significantly more expensive IR materials, offering a low coefficient of thermal expansion, superior homogeneity and low birefringence. Applications of interest include process control and inspection using machine vision, high resolution SWIR imaging, remote sensing and metrology.

To find out more about this material click here.
